An Adapter Lossless music decoder

Independent decoding chip

It uses Realtek ALC5686 for the audio decoding chip, which supports up to 32-bit 384kHz PCM decoding.

Ultimate space layout

The design with side socket has many advantages, which can reduce the length of the mobile phone when put into the pocket or backpack, and will not interfere with the palm of the hand when playing games.

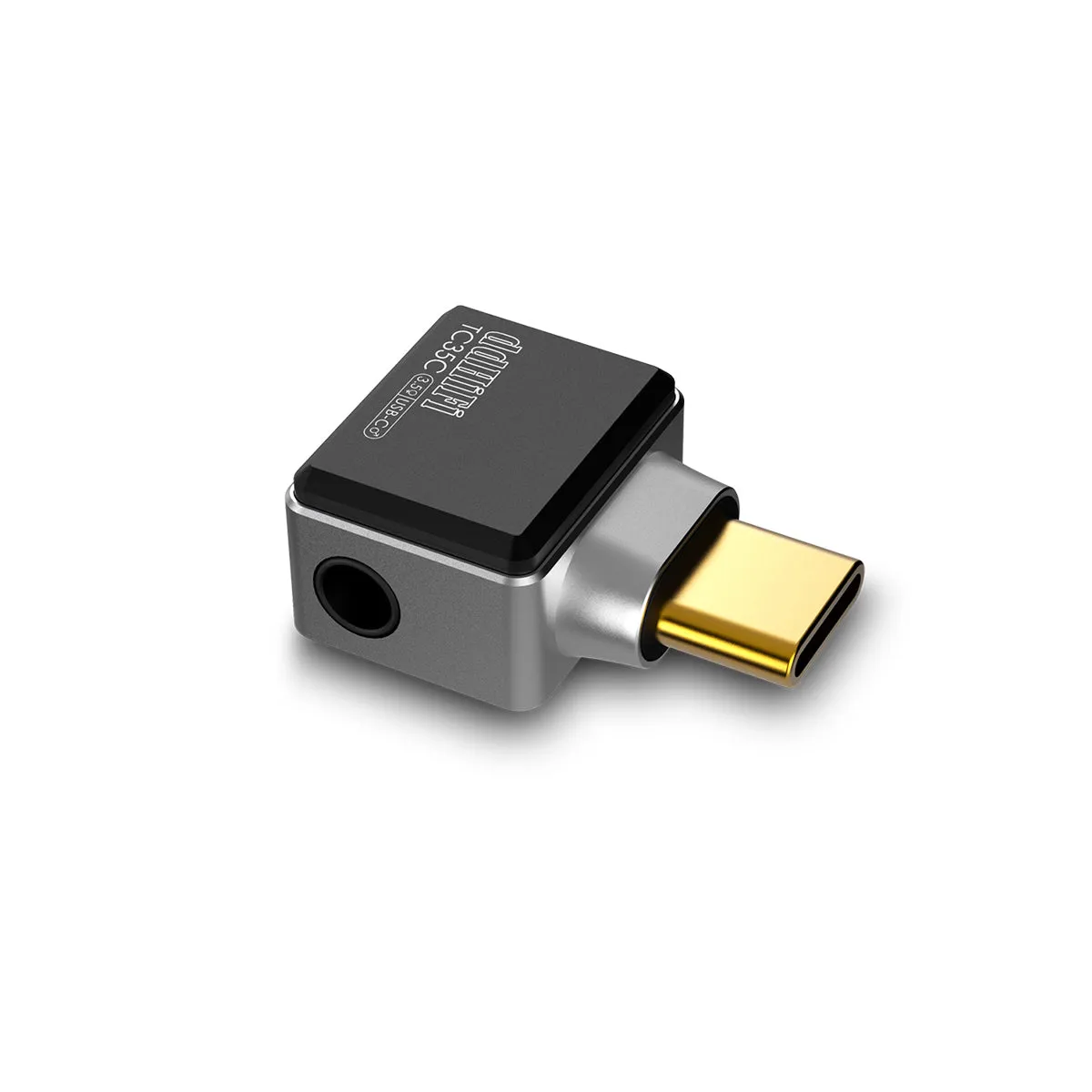

Overall CNC aluminum alloy, new color matching

Aluminum alloy is light and has great advantages when used in adapter. The black and silvery color matching used this time caters to the popular color of smartphone, and the special treatment process of shell also enhances the metal texture.

3.5mm Single-ended

The TC35C adopts a brand new process structure, so as to make the 3.5mm socket look so small.

Specifications

• Plug: OTG USB-C plug
• DAC chip: ALC5686
• Output power: 30mW dual channels (32Ω)
• PCM decoding capability: 32bit/384kHz
• Output load: 16 ~ 200 Ω (adaptive)
• Frequency response: 20Hz~20kHz
• THD N: <-92dB
• Dynamic range: > 110dB
• SNR: >120dB
• Weight: 3.8g
• Dimensions (excl. the plug): 17.0mm×16.2mm×9.6mm (LxWxT)
